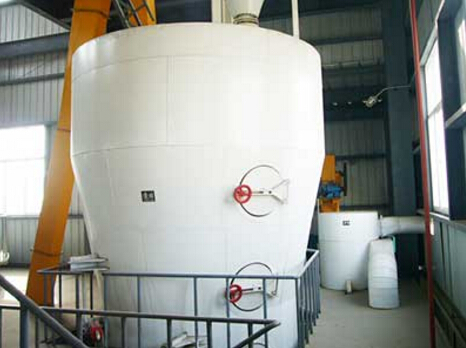

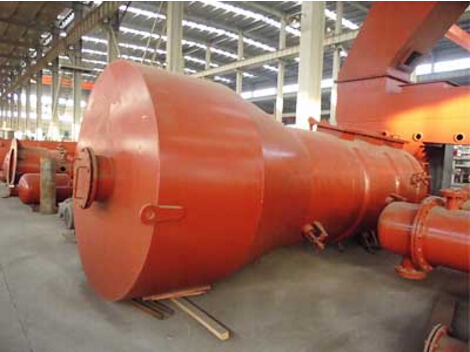

DTDC High Efficient Desolventizer-toaster for Oil Extraction

Features of DTDC desolventizer-toaster:

DTDC desolventizer-toaster is the best equipment for desolventizing the extracted wet meal to realize its desolvation and drying. It can be used to cool the extracted meal with the temperature of 5-10 ℃ higher than ambient temperature for direct packaging and storage. Four layers of indirect steam are used for heating in pre-desolvation. The evaporation layer uses direct steam and the dry layer uses hot-air. Each material layer is provided with a stirring and material level control device to achieve fully pre-desolvation, evaporation and drying effect and reduce the solvent residues effectively. The urease activity of the meal would be reduced to 0.3 mg nitrogen /g/min at around 30℃ on the condition of maintaining the activity of protein at the most extent.


The advantages of DTDC desolventizer-toaster:

1.To inactivate and destroy the anti nutrients like urease and trypsin in the meal to improve its utilization value;

2.To control the degree of protein denaturation and effectively improve the NSI index of meal;

3.To improve the color and flavor of the meal;

4.To reduce the residual solvent in the meal and regulate the moisture of the meal, so as to ensure the lowest solvent consumption and the safe use of the meal


Characteristics of Huatai DTDC desolventizer-toaster:

1.DTDC desolventizer-toaster is the main equipment of desolventizing system of leaching plant, capable of removing the solvent in the wet meal.

2.DTDC desolventizer-toaster has perfect functions. Pre-desolvation, evaporation, drying and cooling of wet meal can be achieved. The wet meal after desolventizingy can be packaged directly;

3.With large transmission torque and load weight;

4.After complete desolventizing of the wet meal, urease activity would be remained at 0.15~0.25, which improves the quality of oil and meal.

Model	Capacity（t/d）	Heat exchange area M2	Height mm	Power KW	Weight（Mt）
DT140	30	10	6020	15	5
DT160	30～50	11	6020	18.5	6.5
DT180	50	11.5	6300	18.5	8
DT200	80	13.2	6300	22	12
DT220	100	15.5	6300	22	14
