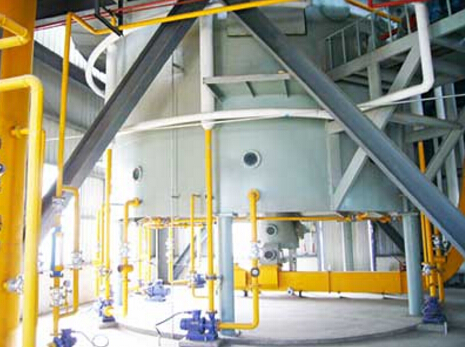

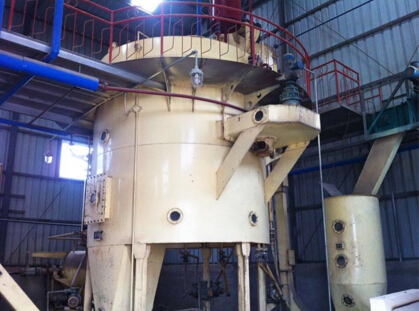

Rotocel Extractor for Solvent Extraction Oil Plant
Introduction:
Rotocel extractor is the extractor with a cylindrical shell, a rotor with several and a drive device inside.Rotocel extractor includes loose bottom(false bottom) extractor, fixed bottom extractor and double layer extractor. Loose bottom rotocel extractor is widely used in domestic oil processing plant in the 1980s. After the 1990s, fixed bottom rotocel extractor became popular, while the loose bottom rotocel extractor was gradually being phased out. Fixed bottom rotocel extractor has the features of simple structure, easy manufacture, low power consumption, smooth operation and less failure. It combines spraying and soaking with good leaching effect, less residual oil, The mixed oil processed through internal filter has less powder and high concentration, and has been used widely. It is suitable for pre pressing of various oil or disposable extraction of soybean and rice bran.
Features:
1.Rotocel extractor is the extractor that used most widely at home and abroad. It has the features of multilayer of material, high concentration of mixed oil, less meal contained in mixed oil, simple structure, smooth operation, low failure rate, easy maintenance and so on. Our company is experienced in the design and production of large rotocel extractor.
2.The fixed grid plate of rotocel extractor is made of stainless steel. The transverse grid plate is added, so that the concentrated mixed oil is prevented from flowing into the drop case, thereby ensuring the leaching effect.
3.Using γ ray material level to control the feeding, which fully guarantees the feeding uniformity and stability, so that the material level of the storage tank is maintained at a certain height, which plays the role of material sealing to avoid running of the solvent, also greatly improves the leaching effect.
4.The feeding device adopts the material stirring pot with two stirring wings, so that the materials falling instantly can be continuously and uniformly unloaded into the wet meal scraper, which not only absorbs the impact on wet meal scraper, but also realizes uniform scraping of the wet meal scraper, thus completely solves the instability of the hopper and wet meal system and prolongs the service life of the scraper as well.
5.The leaching device is driven by the whole casting gear rack with stable operation, long service life and low power.
6.Different spray process and height of material layer are used for the treatment of different materials.
| Model | Capacity(t/d) | Fines content | Rotate speed(rpm) | External diameter(mm) |
| JP240 | 10～20 | ＜8 | 90～120 | 2400 |
| JP300 | 20～30 | 3000 | ||
| JP320 | 30～50 | 3200 | ||
| JP340 | 50 | 3400 | ||
| JP370 | 50～80 | 3700 | ||
| JP420 | 50～80 | 4200 | ||
| JP450 | 80 | 4500 | ||
| JP470 | 80～100 | 4700 | ||
| JP500 | 120～150 | 5000 |
